The Fulsolen Smart B01 EV charger, with a output of up to 40A, offers remote monitoring via Bluetooth through the Fulsolen app, allowing you to check your unit anytime, anywhere. It not only charges your electric vehicle at home but is also conveniently portable, making it ideal for powering your self-driving adventures on the go!
· 22-Foot Charging Cable: The charging cable is designed for durability, making it suitable for use in rainy and snowy weather.

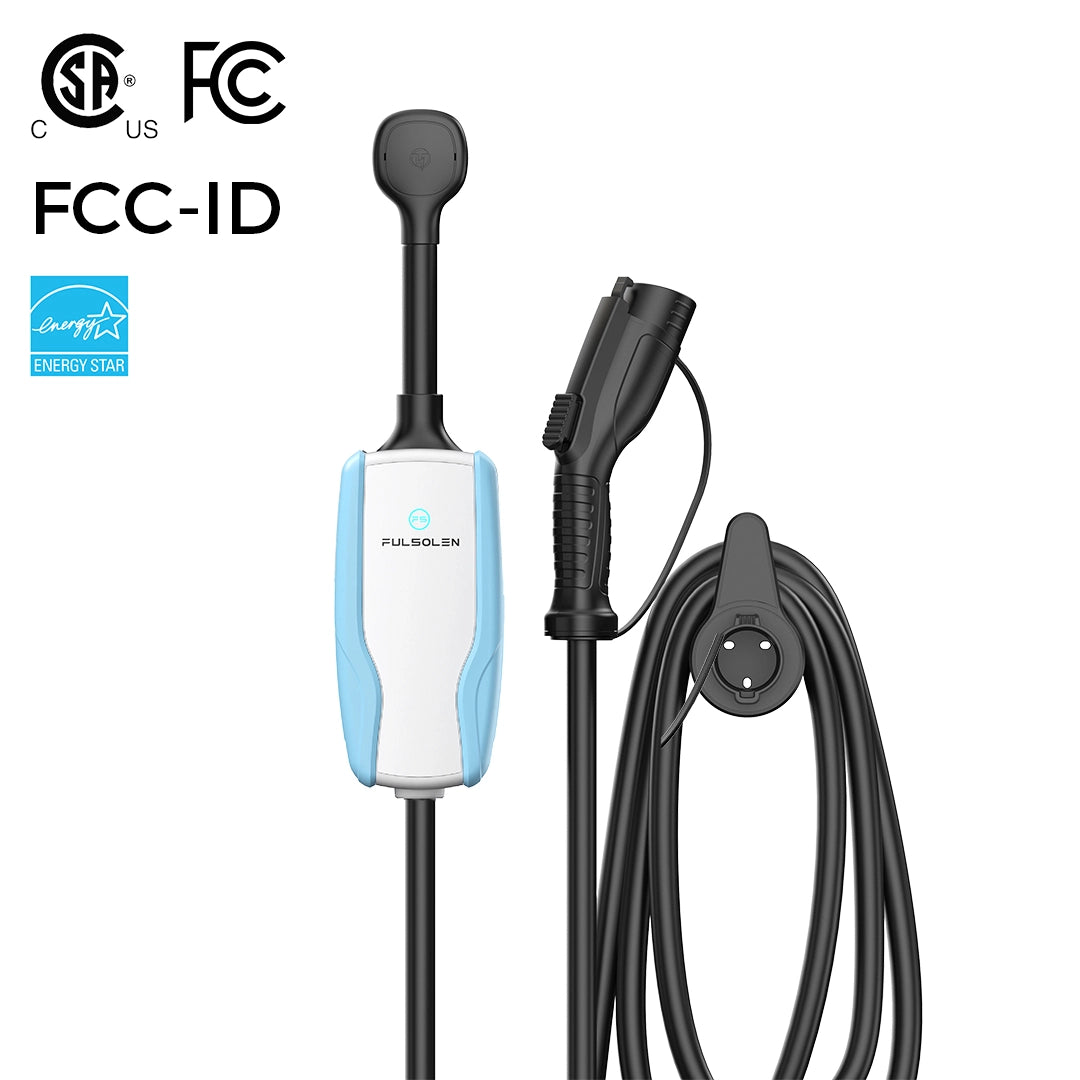

FCC & CSA & Energy Star Certifications
Fulsolen prioritizes user safety above all else. Smart B01 adheres rigorously to the certification standards of both the United States and Canada, having obtained certifications from FCC, CSA, and Energy Star to ensure top-notch safety standards.
The Fulsolen Smart Series EV Charger supports charging power up to 9.6kW. You can easily select different country plug connectors to meet your charging needs wherever you go.

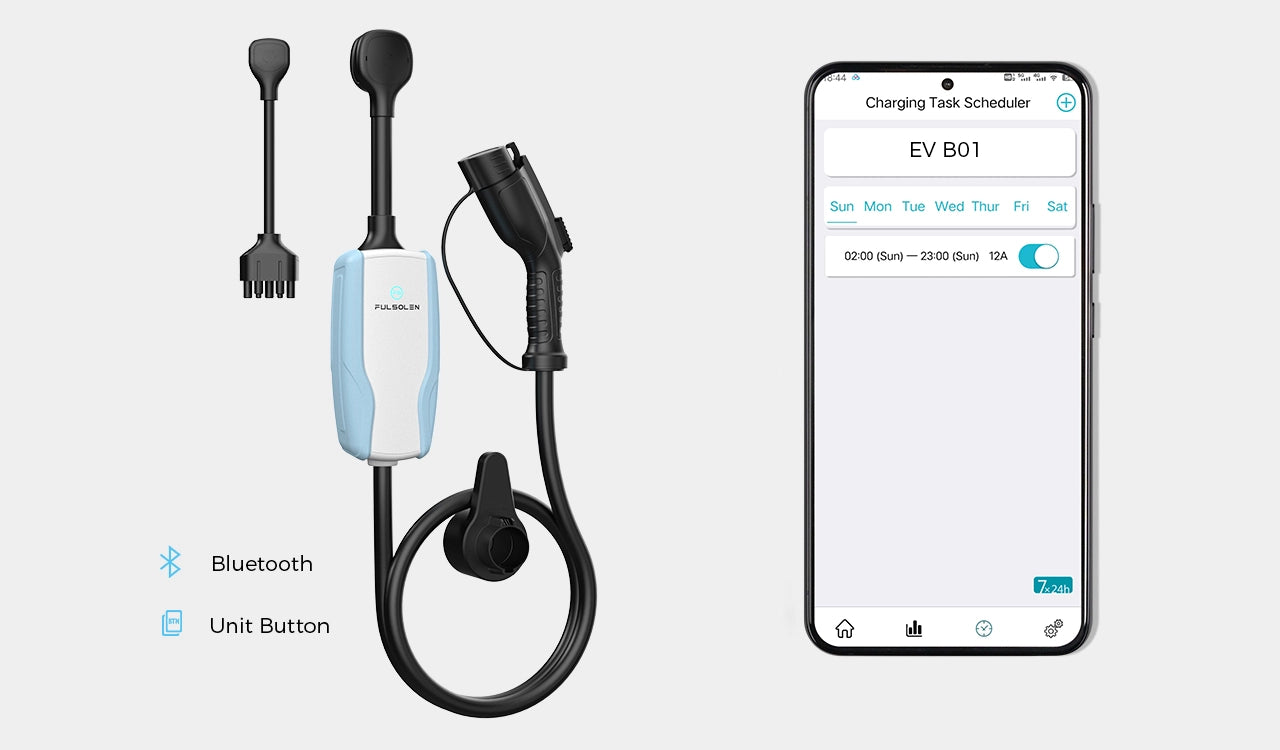

Remotely control your EV Charger in phone APP via Bluetooth from the comfort of your home. Customize your charging schedule through the app to ensure cost-effective charging during off-peak times.
The compact design of the Fulsolen Smart Series allows for easy portability, enabling you to take it wherever you go.

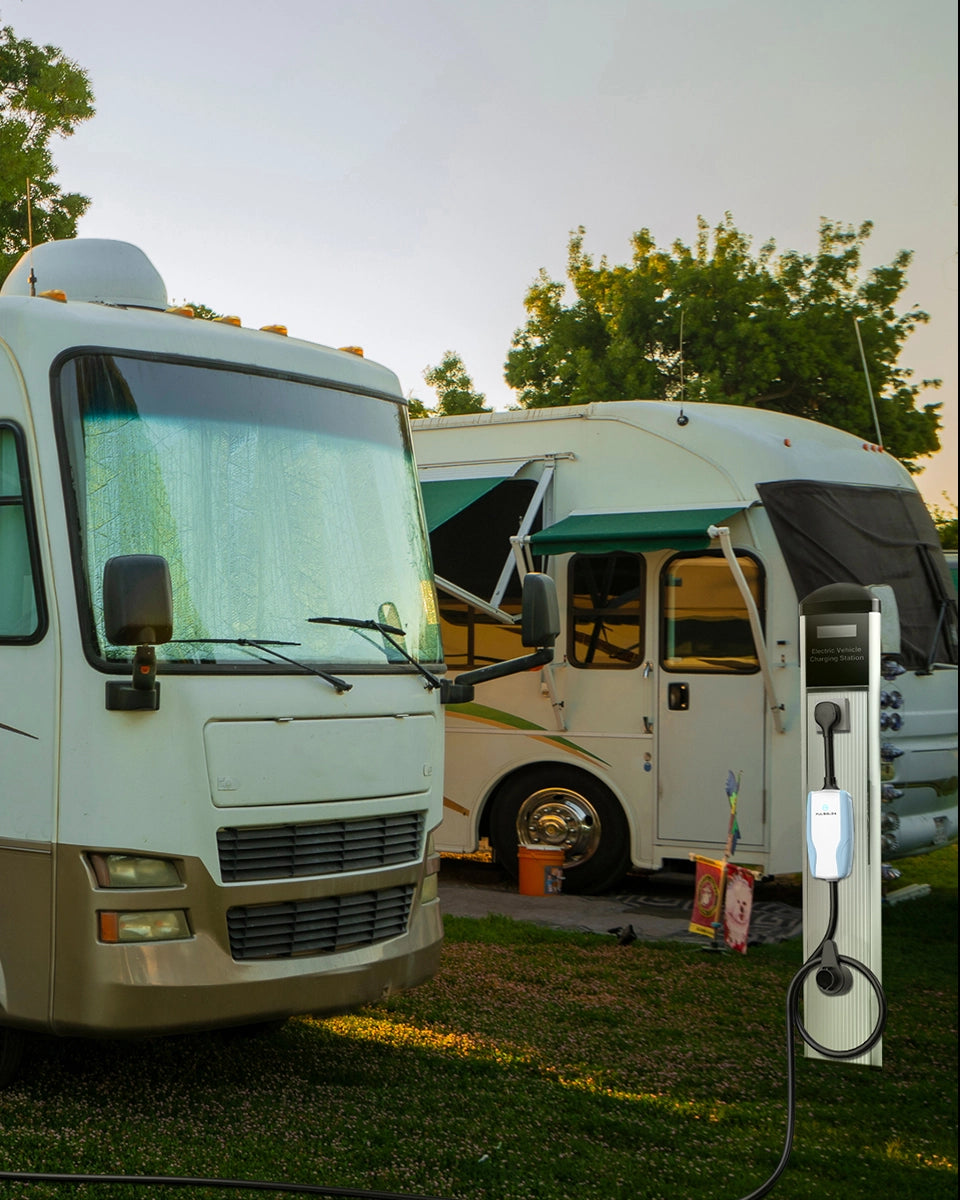

You can charge your electric vehicle at RV parks, parking lots, and any location with access to a power grid.
N5-15P/N14-50P
120V/240V
32A
100-250 volt AC single-phase
50Hz or 60Hz
PC+PBT. Flame retardance UL94: 5VA
SAE J1772
PC+PBT. Copper, silver-plated
Copper + TPE
22ft (6.6 meters) with charging handle installed
Able to withstand 3.3ft (1 meter) free fall drop and 4,409 lbs (2,000kg) vehicle crush test without critical damage.
Red/Green/Blue
1.3 inch OLED blue screen
-22°F ~ 122°F (-30°C ~ 50°C)
5%~95% without condensation
<1.24 miles (2,000 meters)
NEMA 4 (IP66)
Indoor/Outdoor
Natural cooling
Over-voltage protection, Under-voltage protection, Overheating protection, Over-current protection, Leakage protection, Grounding protection, Lightning protection, Fire and flame protection, Waterproof, Dust proof, Antistatic protection
UL 2594, UL2231-1, UL2231-2, CSA C22.2 No.280, CSA C22.2 No.281.1, CSA C22.2 No.281.2
FCC, FCC ID, Energy Star
9.53 x 4.15 x 2.66 inch (242 x 105.5 x 67.5mm)
15.35 x 13.39 x 4.33inch (390 x 340 x 110mm)
16.73 x 15.94 x 6.69inch (425 x 405 x 170mm)
9.7lbs (4.4kg)
16.5lbs (7.5kg)
Carton
10,000 insertion/removal events (no load)
Optional
Bluetooth
Android/IOS
2-year limited warranty
N5-15P/N14-50P
120V/240V
40A
100-250 volt AC single-phase
50Hz or 60Hz
PC+PBT. Flame retardance UL94: 5VA
SAE J1772
PC+PBT. Copper, silver-plated
Copper + TPE
22ft (6.6 meters) with charging handle installed
Able to withstand 3.3ft (1 meter) free fall drop and 4,409 lbs (2,000kg) vehicle crush test without critical damage.
Red/Green/Blue
1.3 inch OLED blue screen
-22°F ~ 122°F (-30°C ~ 50°C)
5%~95% without condensation
<1.24 miles (2,000 meters)
NEMA 4 (IP66)
Indoor/Outdoor
Natural cooling
Over-voltage protection, Under-voltage protection, Overheating protection, Over-current protection, Leakage protection, Grounding protection, Lightning protection, Fire and flame protection, Waterproof, Dust proof, Antistatic protection
UL 2594, UL2231-1, UL2231-2, CSA C22.2 No.280, CSA C22.2 No.281.1, CSA C22.2 No.281.2
FCC, FCC ID, Energy Star
9.53 x 4.15 x 2.66 inch (242 x 105.5 x 67.5mm)
15.35 x 13.78 x 5.12inch (390 x 350 x 130mm)
17.72 x 16.14 x 7.28inch (450 x 410 x 185mm)
13lbs (5.9kg)
17.2lbs (7.8kg)
Carton
10,000 insertion/removal events (no load)
Optional
Bluetooth
Android/IOS
2-year limited warranty
Our charging port type is J1772, so it can charge any electric car and gasoline/electric hybrid car whose socket is J1772 model, but Tesla needs to connect an extra SAE J1772 adapter.
The battery capacity of your electric car, the maximum power of your home charging station, the environment, etc.
When the connector is not plugged in tightly, the charging current of an EV Charger with a maximum charging current of 40A will be limited to 24A.
This product is equipped with over-temperature protection, when the temperature reaches the threshold, the device will alarm and stop charging. It is recommended to charge in Cool and ventilated place to charge, try not to charge for a long time in the environment of high temperature and sunshine.
Take 40A as an example, charging current 40A charging power is about 9KW 40A 230V. if the car battery capacity is 55KWH, 55/9=6.1, theoretically it takes about 6 hours to charge from 0 to full.
Yes, we have specially designed a connector for this purpose. When you can't find a high power socket in the field, you can replace the 14-50 plug to a 5-15 plug, which has less charging power, but this kind of socket is more common.
Yes, our EV Charger has 10 levels of safety protection, such as over-under-voltage, over-under-current protection, anti-static, lightning, leakage protection, etc. The protection level of the shell is IP66, so you can use it safely as long as it is not extreme weather.
